Monday, February 07, 2011

Baffles Pt.3 Final Assembly

After all the baffle pieces were trimmed, fitted, and modified, I sent them off to be powder coated. I went with Tex Black and it turned out Awesome! Thanks for the tip Matt Dralle!

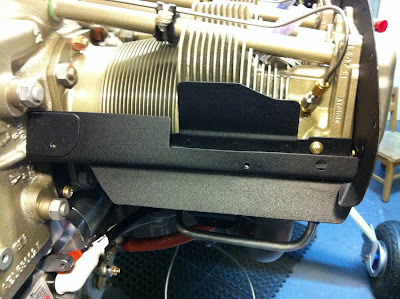

Right Front, modified for my Sam James Plenum(not shown).

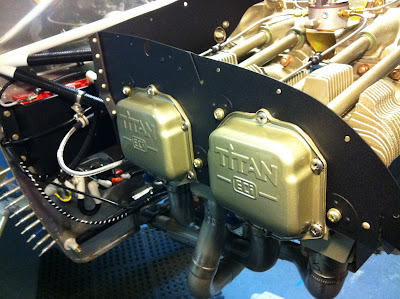

Right Side-

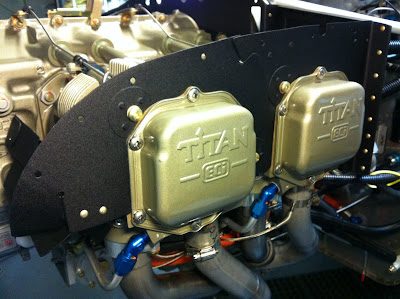

Right Rear- This is where the scat hose will connect that leads to the heat muff. You may also notice one of the holes where the spark plug wires will pass through.
The round holes at the top are where my cooling blast tubes will be connected.
My son, Ford. Age 3 1/2. He's ready to Fly!

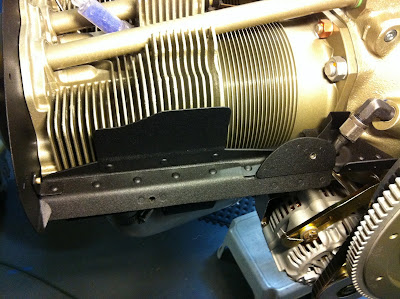

Left Front. Modified for the James Plenum coming soon.

Left Side.

Left Rear- This is where my 9 tube oil cooler will be mounted. I beefed it up in several places to help avoid cracking.
