Wednesday, January 04, 2012

Fuel System Complete!

Left Fuel Tank Vent

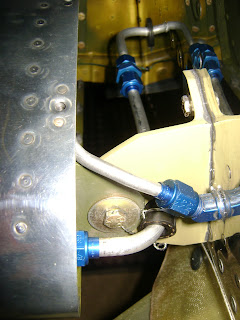

Left Fuselage to Tank Connections
 Forming and fitting the fuel lines turned out to be a bigger challenge than expected! The old lines interfered with the spar nuts, so I pulled them out and fabricated new ones. This was a real pain with all of the other pieces,parts, and wires already in the plane.  *Special Thanks to Jeff Johnson for lending me a hand.

Right Fuselage to Tank Connections
  Pictured is my aerobatic tank. I chose to put a flop tube in this one, hence the leading edge fuel line.
