Master Relay and Starter Solenoid Wired
I left the top 2awg positive cable off the battery for now.

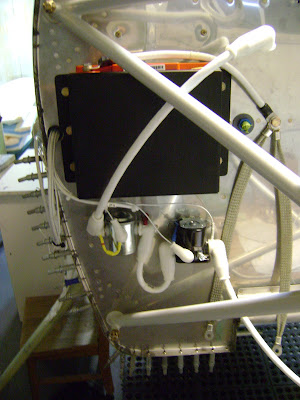

The Master Relay and Starter Solenoid are all wired up. I added a hot wire for the fwd aux plug, as I want to be able to reverse charge the battery from the pilots outlet. I also added a wire for a Starter Engage annunciator. The only other extras are the surge protection diodes, shown here covered in yellow and blue heat shrink.
