Electric Elevator Trim Motor

The electric trim servo. I got some Dean connectors from the local Hobby Town to connect the tiny 26 awg wires. I decided this was the best option for allowing me to disconnect the servo for future aircraft painting. You could use a D-sub connector as another option, but that seemed like a bigger pain.

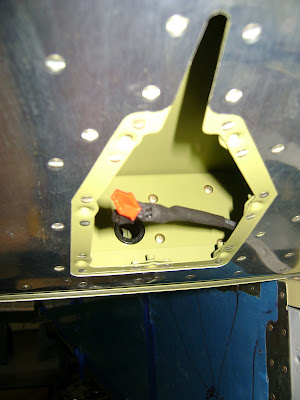

Trim wire. I ran it through the tiny relief hole in the bottom corner of the elevator. I soldered and heat shrank all the wires. Yes, it was difficult to solder those little wires....

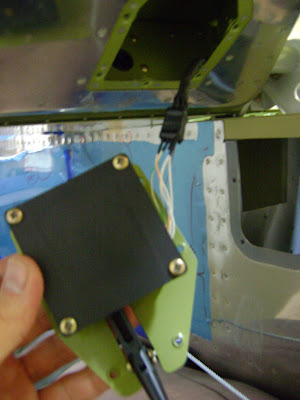

All connected. I will wait to trim the push rod to length...
