Monday, September 29, 2008

Rear Bulkhead and Bottom Rear Skin Prep

Riveting taking place on the F812 Bulkhead assembly. Tight quarters....

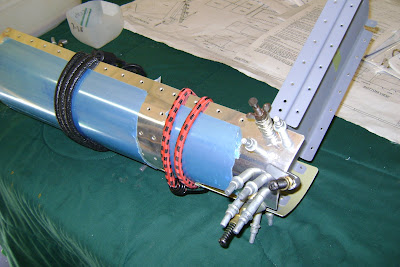

All clecoed and clamped up. I used bungee cords to help hold every thing tight.

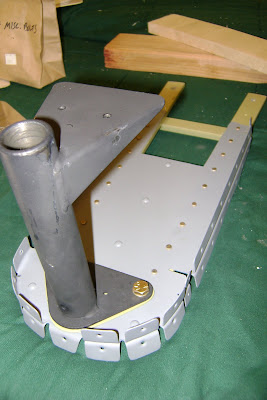

I riveted the angle and stab attach bars to the F811 Bulkhead. The Tail Spring Mount has also been final drilled and bolted in place. The orange dots are torq seal. another view of the tail spring mount after being drilled 1/4"to accept AN4 bolts.
Stab bars riveted, don't rivet the bottom two holes...
