Tuesday, March 11, 2008

Installed Pitot Tube

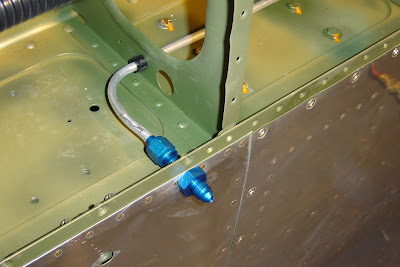

Pitot Tube Installed. Be sure to torque all fittings.


First I installed the grommets in the ribs then I ran the line. Making the bend inside the wing is a bit of a trick, but doable. Use a tube bender and aviation flaring tool to do the job. Don't forget to place the AN sleeve and nut in place before flaring the end. Thanks to Brian and Lee for the tool loan.
